UL1242 Intermediate Metal Conduit (IMC)
Material : Carbon structural steel (Q195)
Surface Finish : Hot dipped galvanized & Pre-galvanized
Type : Medium thickness

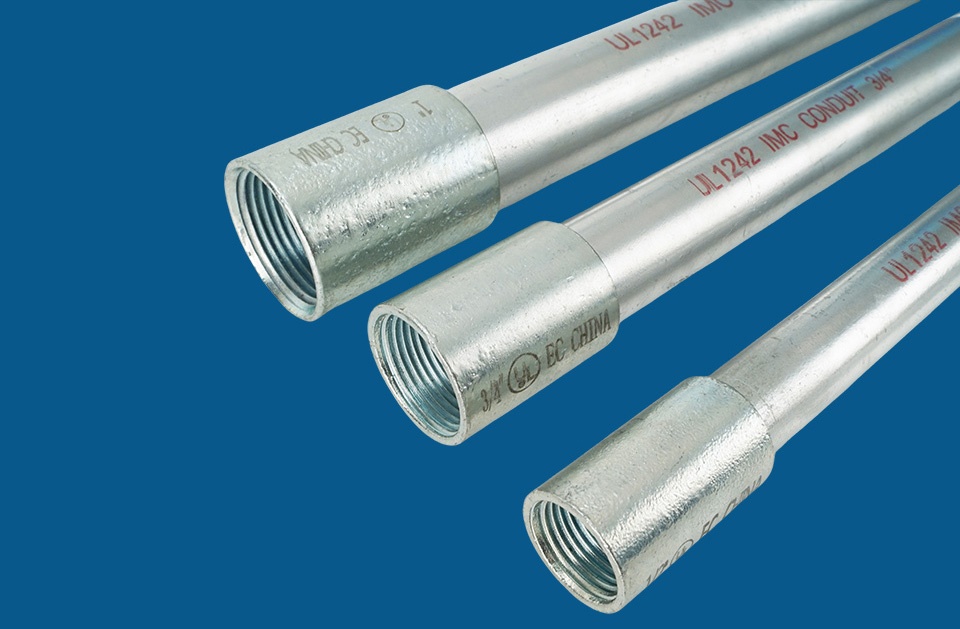

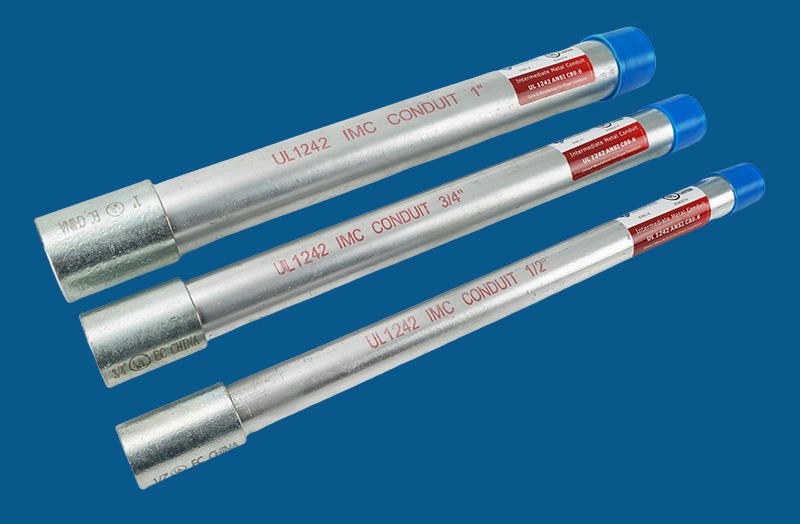

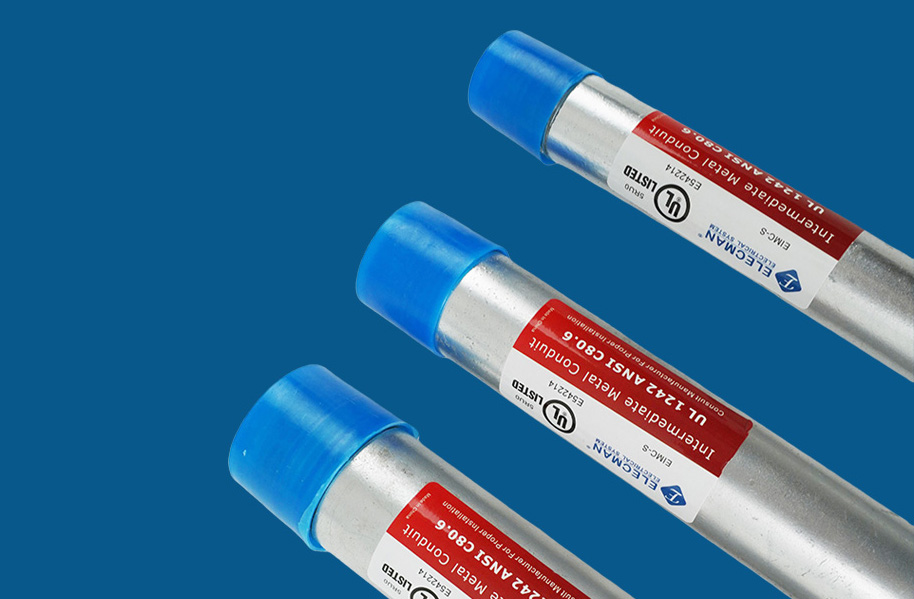

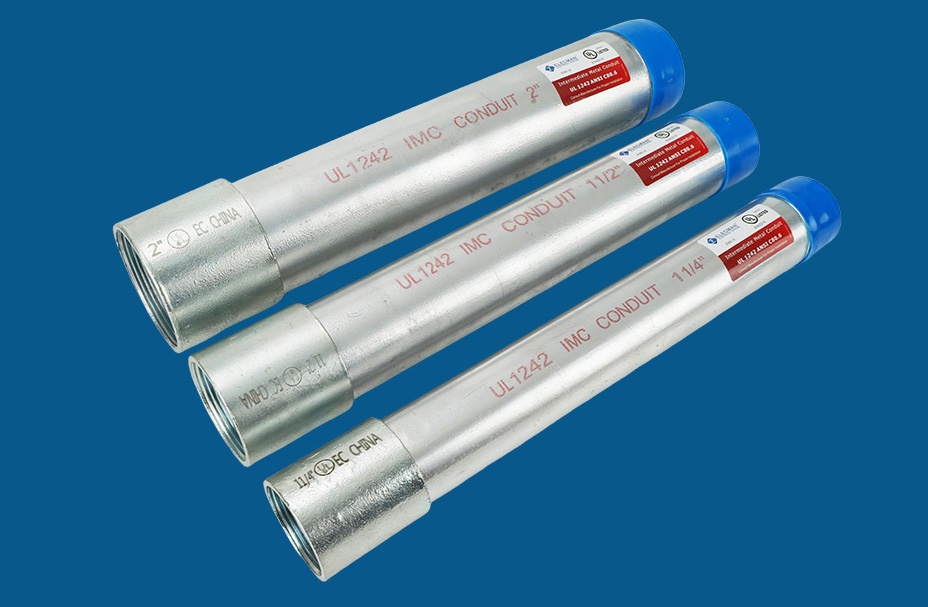

ELECMAN® Intermediate Metal Conduit (IMC Conduit)

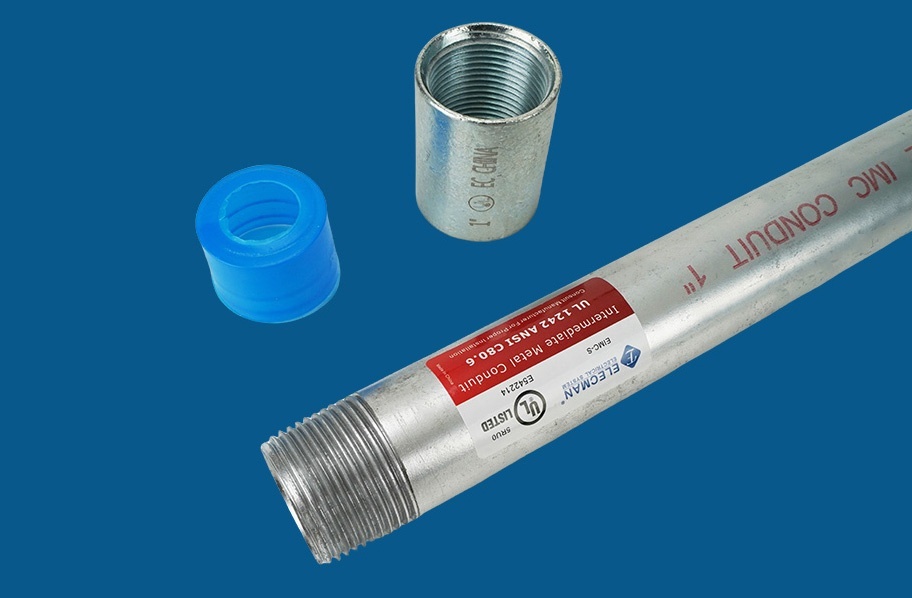

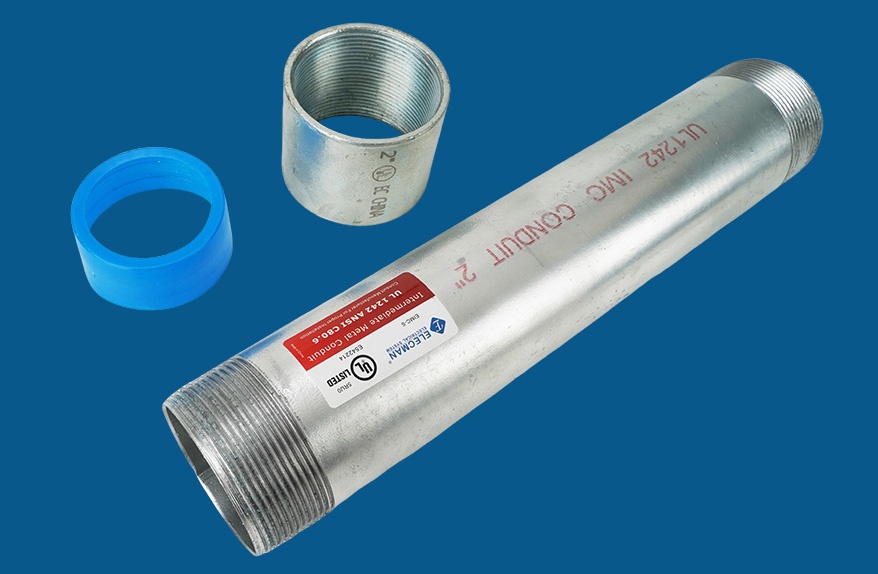

ELECMAN® Intermediate Metal Conduit is a circular cross-section canalization used for Electrical instalations in any type of building,ELECMAN® Intermediate Metal Conduit is threaded on both ends.
ELECMAN® Intermediate Metal Conduit removes any sharp or rough edge to protect the cables when installations.
ELECMAN® Intermediate Metal Conduit is manufactured according to:
·American National Standards Institute, Inc.-ANSI C80.6
·UL standard for intermediate metal conduit - steel, UL1242 , file # E542214
·Underwriters Laboratories Standard for Electrical Metallic Tubing.-UL1242
RAW MATERIAL:
ELECMAN® Intermediate Metal Conduit (IMC) is produced from Carbon structural steel (Q195)
SPECIFICATION DATA:
ELECMAN® Intermediate Metal Conduit (IMC) is listed to UL Safety Standard 1242 and manufactured in accordance with ANSI C80.6. details shall accord with Table 1.
| Table 1 | |||||||
| CAT # | Trade Size | Outside Diameter | Wall Thickness | Length | |||
| Inch | mm | Inch | mm | Feet | mm | ||
| IMC050 | 1/2" | 0.815 | 20.70 | 0.077 | 1.97 | 10 | 3050 |
| IMC075 | 3/4" | 1.029 | 26.26 | 0.082 | 2.10 | 10 | 3050 |
| IMC100 | 1" | 1.290 | 32.77 | 0.092 | 2.35 | 10 | 3050 |
| IMC125 | 1-1/4" | 1.638 | 41.59 | 0.094 | 2.41 | 10 | 3050 |
| IMC150 | 1-1/2" | 1.883 | 47.82 | 0.100 | 2.54 | 10 | 3050 |
| IMC200 | 2" | 2.360 | 59.93 | 0.105 | 2.67 | 10 | 3050 |
| IMC250 | 2-1/2" | 2.857 | 72.57 | 0.150 | 3.81 | 10 | 3050 |
| IMC300 | 3" | 3.476 | 88.29 | 0.150 | 3.81 | 10 | 3050 |
| IMC350 | 3-1/2" | 3.971 | 100.86 | 0.150 | 3.81 | 10 | 3050 |
| IMC400 | 4" | 4.466 | 113.44 | 0.150 | 3.81 | 10 | 3050 |
| Notes: Applicable tolerance | |||||||
| Length: 10ft ±1/5in. 3050mm ±5.08mm. | |||||||
| Different thickness or length is available. | |||||||
PACKING INFORMATION:
IMC conduit are packed in bundles with woven bag, we also can put customers’ sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. for regular packing information, please check the Table 2.
| Table 2 | ||||||
| CAT # | Trade size | O.D | Thickness | Weight | PACKING | |
| mm | mm | kgs | pcs/small bundle | small bundle/big bundle | ||
| IMC050 | 1/2" | 20.70 | 1.97 | 2.780 | 10 | 25 |
| IMC075 | 3/4" | 26.26 | 2.10 | 3.790 | 10 | 15 |
| IMC100 | 1" | 32.77 | 2.35 | 5.380 | 5 | 15 |
| IMC125 | 1-1/4" | 41.59 | 2.41 | 7.130 | 3 | 10 |
| IMC150 | 1-1/2" | 47.82 | 2.54 | 8.650 | 3 | 10 |
| IMC200 | 2" | 59.93 | 2.67 | 11.490 | 3 | 10 |
| IMC250 | 2-1/2" | 72.57 | 3.81 | 19.700 | 1 | 15 |
| IMC300 | 3" | 88.29 | 3.81 | 24.200 | 1 | 20 |
| IMC350 | 3-1/2" | 100.86 | 3.81 | 27.380 | 1 | 20 |
| IMC400 | 4" | 113.44 | 3.81 | 31.370 | 1 | 20 |
| Note: Can be packaged according to the customer's packing requirements | ||||||
Other names:Tubos IMC, IMC conduit, IMC pipe, IMC tuberia,Tubería IMC,Tubería Eléctrica Intermedio IMC, IMC tube,Tubería Conduit de Metal Intermedio
E542214 UL 1242 IMC Conduit Certification.pdf
ELECMAN® IMC Conduit Technical Data Sheet.pdf
